Built to spec
Built to your engineered drawings, survey, and the real site conditions, not a one-size-fits-all approach forced to fit.
Commercial and heavy-civil construction in Aurora
Concrete Barriers and Bollards Aurora
Concrete Barriers and Bollards in Aurora are cast or set concrete protection elements that control traffic and protect structures.
- Licensed, Insured & WSIB-Covered
- 20 Years in Business
Get a Quote in Aurora
Tell us what you need and we’ll get you a quote. Licensed, insured & WSIB-covered · Free, no-obligation quote & on-site assessment.
Get a Quote
Licensed, insured & WSIB-covered · Free, no-obligation quote & on-site assessment.
20 Years in Business
Licensed, Insured & WSIB-Covered Completed to code & Ontario requirements Completed on site and built to the drawings Performed & installed on site across Ontario
Why Harrowgate Group
What to expect from concrete barriers and bollards in Aurora
Made to last
Durable materials and methods chosen for the load, traffic, and environment on site.
Quote-ready
Send specs, drawings, or photos and get a free, no-obligation site visit and estimate with no guesswork.
Code-conscious
Installation and site work completed in accordance with Ontario requirements.
Our Process
How the concrete barrier and bollard construction process works
Local Context
Concrete Barriers and Bollards in Aurora
Scope
Understanding concrete barriers and bollards

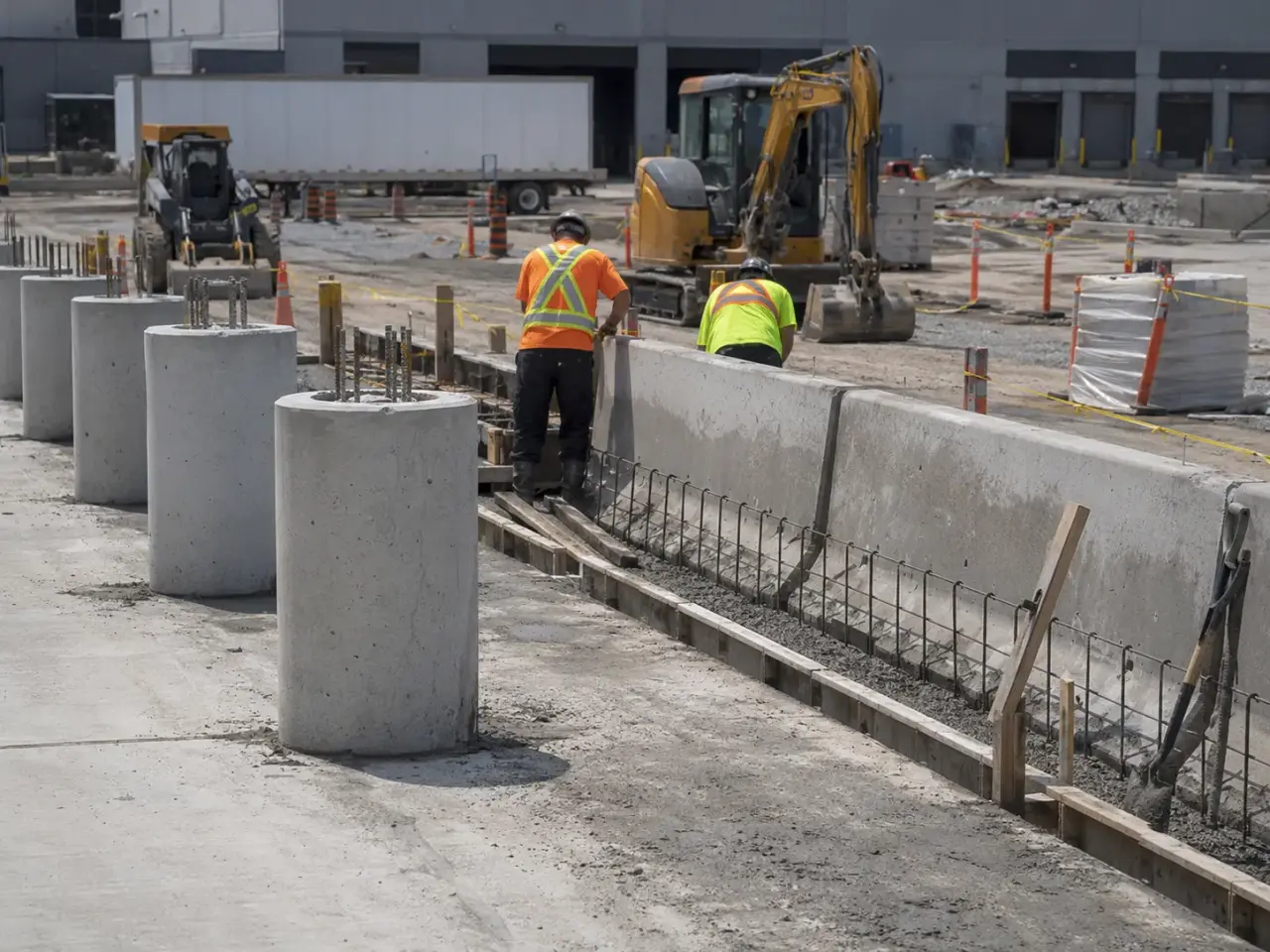

Which barrier or bollard system fits the hazard?
The system is selected from the hazard, vehicle mass and speed, required stopping or deflection behaviour, protected asset, pedestrian exposure, clearances, underground services, drainage, snow removal, and replacement needs. Precast barriers suit movable traffic separation, cast-in-place barriers form permanent edges, embedded steel bollards resist impact through foundations, and removable units preserve controlled access.
Precast concrete barriers. Approved profiles can channel traffic, protect work zones, and separate vehicles. Bearing surface, end treatment, connection, alignment, drainage openings, visibility, and transitions determine whether the line performs safely.
Cast-in-place barrier walls. Permanent parking, ramp, bridge, loading, and security barriers can be formed on foundations or structural slabs. Reinforcement, anchorage, movement joints, drainage, vehicle load, and the supporting structure follow the engineering.
Embedded and foundation-mounted bollards. Pipe or proprietary posts transfer impact into a concrete footing, grade beam, or slab. Depth, reinforcement, spacing, utility clearance, corrosion protection, fill, and cap are coordinated with the rated or non-rated design.
Removable and decorative systems. Receiver sleeves, lockable posts, architectural covers, and shallow-mount products serve access control or visual protection where the design permits. A decorative appearance does not establish crash resistance.

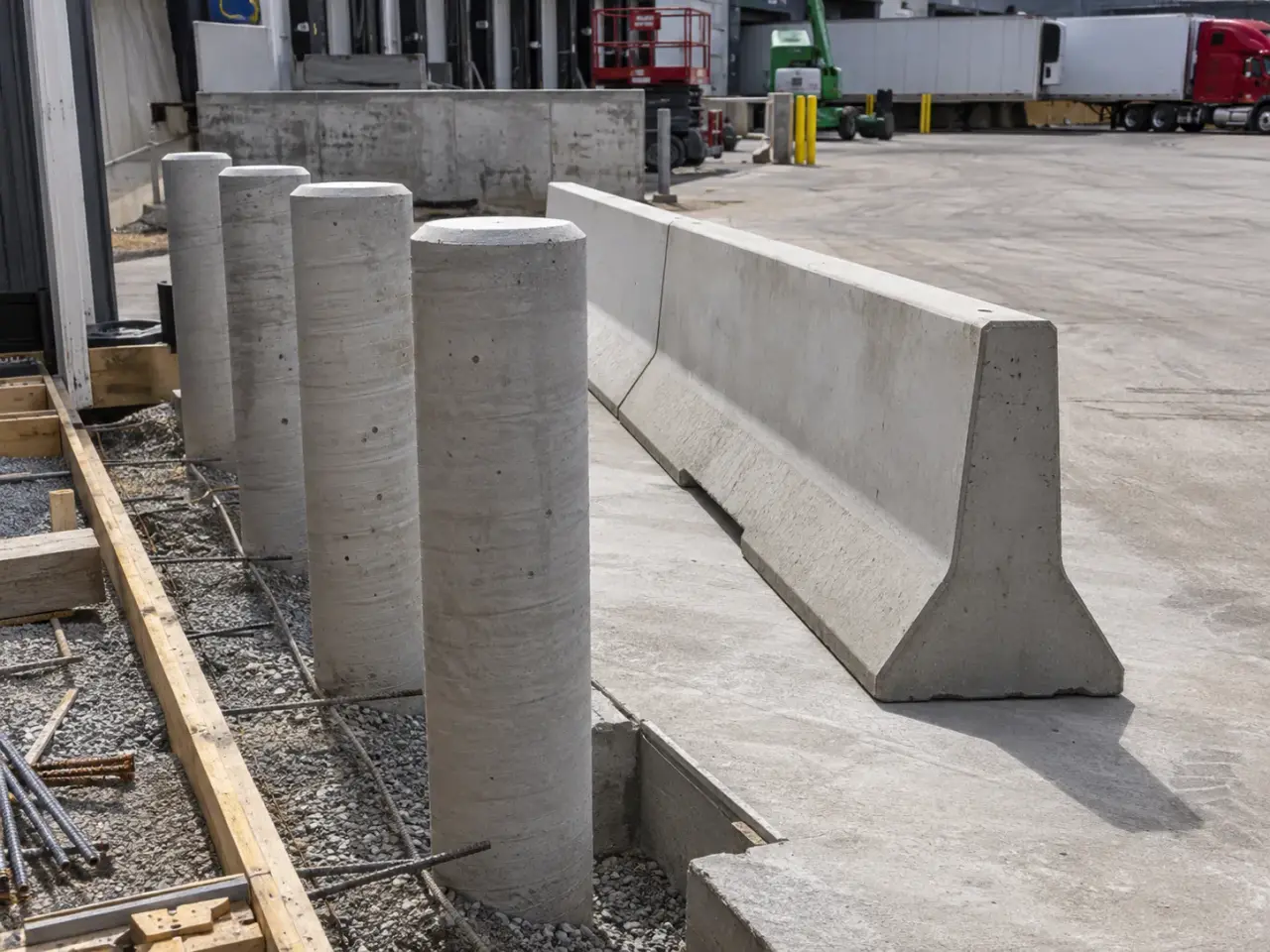

How we deliver concrete barrier and bollard construction
Step 1, define the hazard and performance. Harrowgate confirms the protected zone, vehicle path, design rating where required, spacing, opening, pedestrian route, sightline, drainage, and operating access.
Step 2, locate utilities and structural limits. Scanning, locates, survey, slab review, and excavation controls establish where foundations or anchors can be installed without striking services or weakening the support.
Step 3, prepare foundations and hardware. Excavation, base, reinforcing, sleeves, templates, embeds, anchors, and forms are fixed against movement and checked for alignment and finished height.
Step 4, place concrete and set the system. Concrete is consolidated around congested posts and anchors, finished to shed water, cured, and protected from premature impact. Precast units are lifted on prepared bearing and connected as detailed.
Step 5, complete visibility and circulation. Covers, coatings, reflective markings, caps, pavement, joints, and landscaping are restored. Clear opening, alignment, drainage, and pedestrian bypass are verified.
Survey crews set offsets, alignment, finished elevations, clearances, and end treatments. Utility locates and daylighting confirm that foundations and anchors will not conflict with buried services.

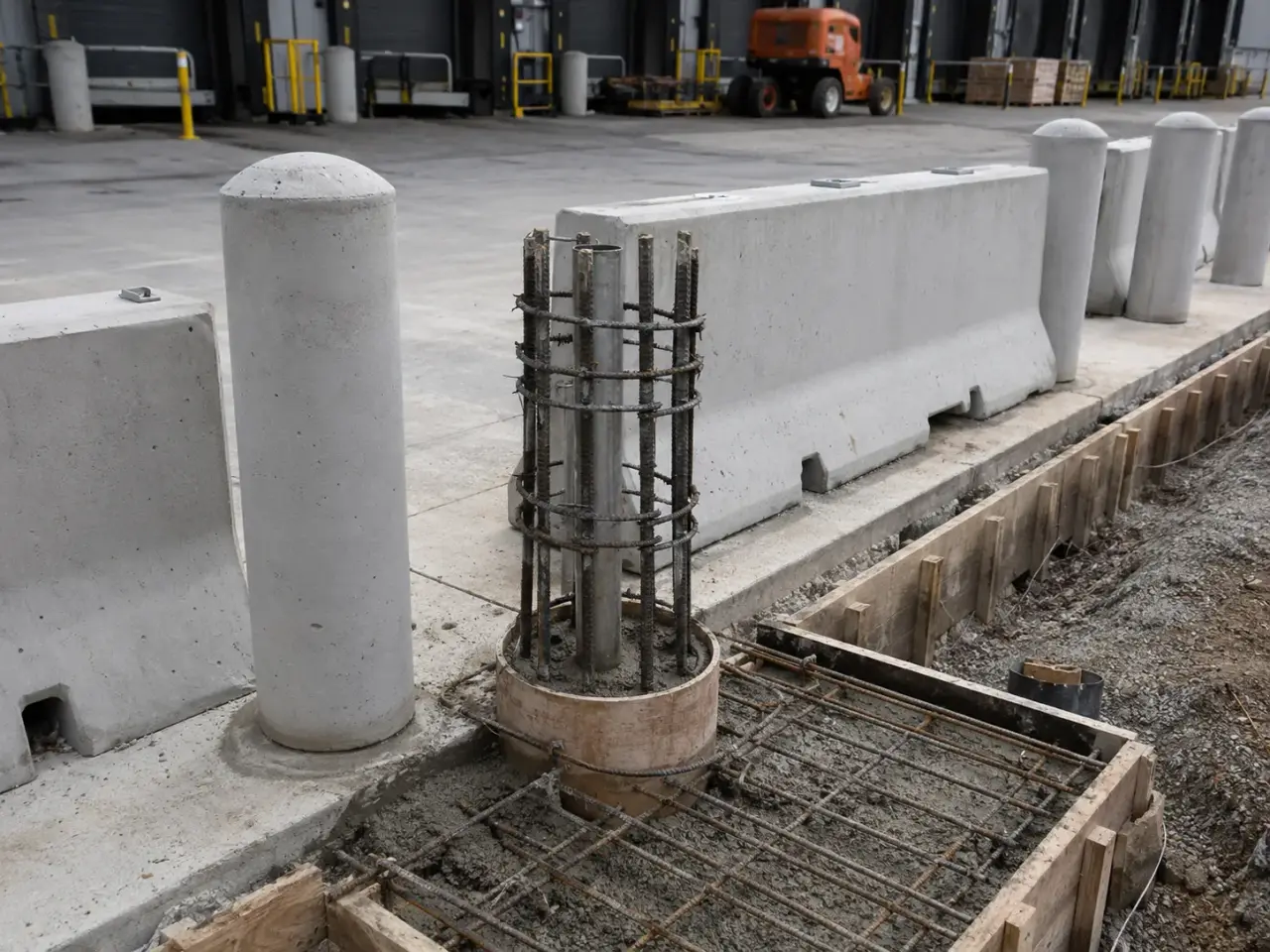

Concrete Barriers and Bollards sequence, step 2. For cast-in-place work, we excavate to competent subgrade, install granular base, forms, dowels, cages, sleeves, and embeds, then verify geometry before concrete placement.
Concrete Barriers and Bollards sequence, step 3. Precast barriers are lifted from approved points, set on the specified base, aligned, connected, and anchored where detailed. Bollards are embedded, base-plated, or sleeved exactly as designed.
Concrete Barriers and Bollards sequence, step 4. Concrete is consolidated, finished, cured, and protected from traffic until strength criteria are achieved. We complete pavement, curb, joint, coating, and line-marking restoration around the installation.
Have drawings for concrete barriers and bollards in Aurora? Send them over and we will scope it.
FAQ
Concrete Barriers and Bollards FAQ
Which field activities are included in concrete barrier and bollard construction?
Survey crews set offsets, alignment, finished elevations, clearances, and end treatments. Utility locates and daylighting confirm that foundations and anchors will not conflict with buried services. Concrete is consolidated, finished, cured, and protected from traffic until strength criteria are achieved. We complete pavement, curb, joint, coating, and line-marking restoration around the installation.
Which Ontario requirements govern concrete barrier and bollard construction?
The governing document set is CSA A23.1 and A23.2, CSA A23.3, CAN/CSA S6 for bridge applications, applicable OPSS and OPSD requirements, the 2024 Ontario Building Code, and engineered site-specific details. Bollard diameter, wall thickness, steel grade, embedment, concrete footing, anchors, spacing, and height are selected by the engineer for the intended operating or impact load.
Which site conditions drive the price of concrete barrier and bollard construction?
The price responds to required impact performance, element count and size, cast-in-place or precast selection, foundation depth, reinforcing, anchors, utilities, traffic control, excavation conditions, and pavement restoration. A generic bollard detail can be dangerously underdesigned for the actual vehicle and offset. We build only to a defined performance requirement and engineered foundation.
Which hold points control the concrete barrier and bollard construction schedule?
The controlling schedule factors are engineering release, utility clearance, precast lead time, excavation quantity, concrete cure and strength requirements, lane closures, access windows, and surrounding restoration. Concrete is consolidated, finished, cured, and protected from traffic until strength criteria are achieved. We complete pavement, curb, joint, coating, and line-marking restoration around the installation.
How does Harrowgate execute concrete barrier and bollard construction beside active operations?
Yes. We phase protection lines, maintain emergency and loading routes, use temporary traffic control, and schedule disruptive excavation or concrete placement around facility operating windows. A generic bollard detail can be dangerously underdesigned for the actual vehicle and offset. We build only to a defined performance requirement and engineered foundation.
Which records verify completed concrete barrier and bollard construction?
We check survey layout, utility clearance, excavation depth, subgrade, reinforcement, embedment, anchors, form geometry, concrete tickets and tests, alignment, connection completion, and restored grades. Bridge and highway barrier geometry and loading follow the applicable Canadian Highway Bridge Design Code, MTO requirements, OPSD details, and contract drawings for the specific roadway classification.
What documents are required to price concrete barrier and bollard construction?
Provide civil and structural details, intended protection objective, vehicle types, site plan, utility records, pavement sections, traffic and loading constraints, finish requirements, and the required completion window. Concrete is consolidated, finished, cured, and protected from traffic until strength criteria are achieved. We complete pavement, curb, joint, coating, and line-marking restoration around the installation.
Is a concrete-filled steel post automatically crash-rated?
No. Crash performance depends on the complete tested or engineered system, including post material, diameter, embedment, reinforcing, foundation, spacing, vehicle mass, speed, and permitted penetration. Concrete fill alone does not establish a rating.
How are underground utilities avoided during bollard installation?
Harrowgate checks utility locates, drawings, scanning, surface features, and excavation methods before drilling or digging. Conflicts are returned to the designer for relocation or an alternate foundation. A shallow foundation is not substituted without confirming that it can deliver the required performance.
Still have a question about concrete barriers and bollards in Aurora? Ask our team directly.
